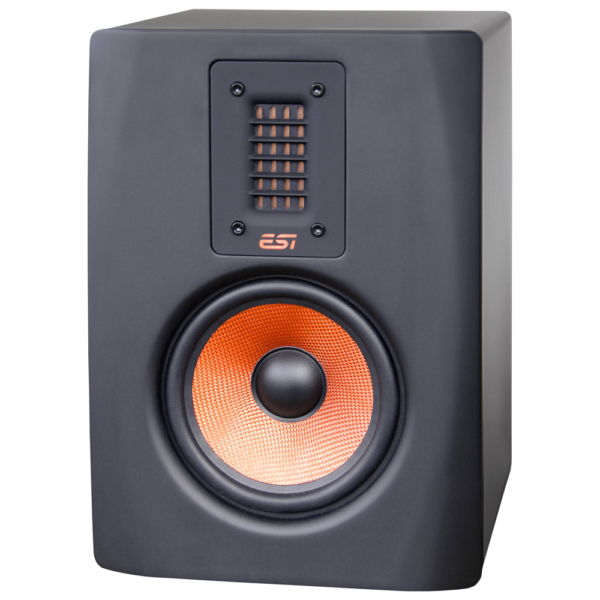

اسپیکر مانیتور ای اس آی مدل uniK05 plus
خصوصیات و ویژگی های uniK 05 plus:
Biamp 2-Way Powered Speaker System
Active Studio Monitor Speaker
HF Driver: extremely low mass magnetostactic tweeter Φ49 x 26 mm
LF Driver: 5" kevlar curved cone (magnetic shielding type)
Output Power: 80W (HF: 40W, LF: 40W), 110W AC consumption power
Frequency Response: 49Hz - 25kHz
Input Impedance: 27.2kOhm (balanced) / 13.6kOhm (unbalanced)
Crossover Point: 3.2kHz
SPL: 101dB, Peak 104dB

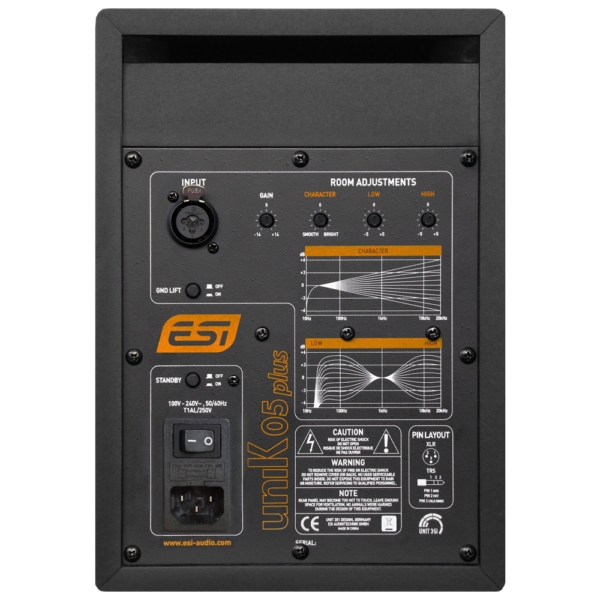

Input Connectors: XLR / TRS 1/4" combo connector, balanced / unbalanced
Gain Control: -14 .. 0dB .. +14
Room Adjustments Control: Character: -6 .. 0dB .. +6; Low: -5 .. 0dB .. +5; High: -5 .. 0dB .. +5
Rear Bass-Reflex ventilation, optimized for near field application
Ground lift switch
Standby function, can be turned on and off
Indicator: multi color LED on front panel, power on orange, standby red
Feet: 4 pieces rubberized, adjustable height separately
Working Voltage: AC100-240V 50/60Hz
Biamp 2-Way Powered Speaker System
Active Studio Monitor Speaker
HF Driver: extremely low mass magnetostactic tweeter Φ49 x 26 mm
LF Driver: 5" kevlar curved cone (magnetic shielding type)
Output Power: 80W (HF: 40W, LF: 40W), 110W AC consumption power
Frequency Response: 49Hz - 25kHz
Input Impedance: 27.2kOhm (balanced) / 13.6kOhm (unbalanced)
Crossover Point: 3.2kHz
SPL: 101dB, Peak 104dB
Input Connectors: XLR / TRS 1/4" combo connector, balanced / unbalanced
Gain Control: -14 .. 0dB .. +14
Room Adjustments Control: Character: -6 .. 0dB .. +6; Low: -5 .. 0dB .. +5; High: -5 .. 0dB .. +5
Rear Bass-Reflex ventilation, optimized for near field application
Ground lift switch
Standby function, can be turned on and off
Indicator: multi color LED on front panel, power on orange, standby red
Feet: 4 pieces rubberized, adjustable height separately
Working Voltage: AC100-240V 50/60Hz
| مشخصات فنی |
| آمپلی فایر |
A-B Class |
| اندازه ووفر |
"4 |
| شدت خروجی صدا |
102db |
| منبع تغذیه برق |
220V - 240V AC |
| ورودی آنالوگ |
1xXLR & 1xRCA |
| پاسخ فرکانسی |
50Hz...20kHz |
